B.B. CONVERTER

拡大写真 : CAUTIONS -分解禁止-

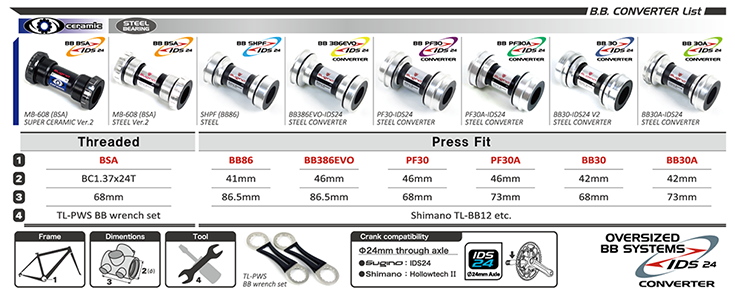

拡大写真 : B.B. CONVERTER LIST
LOGO


SUPER CERAMIC

MB-608 (BSA) SUPER CERAMIC Ver.2

Super CeramicBB BSA IDS24
Picture : MB-608 (BSA) SUPER CERAMIC Ver.2 Zoom : MB-608 (BSA) SUPER CERAMIC Ver.2
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : BSA
B.B. shell width : 68mm
B.B. inner diameter : BC1.37 x 24T
  Threaded
Press Release

» Press Release 2022 0216 Download (PDF File)

PF30-IDS24 SUPER CERAMIC CONVERTER

*To be discontinued
when stocks sell out
Super CeramicBB30 PF30/IDS24 CONVERTER
Picture : PF30-IDS24 SUPER CERAMIC CONVERTER Zoom : PF30-IDS24 SUPER CERAMIC CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : PF30
B.B. shell width : 68mm
B.B. inner diameter : ∅46mm
  Press fit

PF30A-IDS24 SUPER CERAMIC CONVERTER

*To be discontinued
when stocks sell out
Super CeramicBB30 PF30A/IDS24 CONVERTER
Picture : PF30A-IDS24 SUPER CERAMIC CONVERTER Zoom : PF30A-IDS24 SUPER CERAMIC CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : PF30A
B.B. shell width : 73mm
B.B. inner diameter : ∅46mm
  Press fit

*The converter is not compatible with frames with "BB shell in 83mm width" and "Ai offset".

Important notification to customers :

STEEL BEARING

MB-608 (BSA) STEEL Ver.2

STEEL BEARINGBB BSA IDS24
Picture : MB-608 (BSA) STEEL Ver.2 Zoom : MB-608 (BSA) STEEL Ver.2
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : BSA
B.B. shell width : 68mm
B.B. inner diameter : BC1.37 x 24T
  Threaded
Press Release

» Press Release 2022 0216 Download (PDF File)

SHPF(BB86) STEEL

STEEL BEARINGBB SHPF/IDS24
Picture : SHPF(BB86) STEEL Zoom : SHPF(BB86) STEEL
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : PF BB86
B.B. shell width : 86.5mm
B.B. inner diameter : ∅41mm
  Press fit

BB386EVO-IDS24 STEEL CONVERTER

STEEL BEARINGBB 386EVO IDS24
Picture : BB386EVO-IDS24 STEEL CONVERTER Zoom : BB386EVO-IDS24 STEEL CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : BB386EVO
B.B. shell width : 86.5mm
B.B. inner diameter : ∅46mm
  Press fit

PF30-IDS24 STEEL CONVERTER

STEEL BEARINGBB30 PF30/IDS24 CONVERTER
Picture : PF30-IDS24 STEEL CONVERTER Zoom : PF30-IDS24 STEEL CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : PF30
B.B. shell width : 68mm
B.B. inner diameter : ∅46mm
  Press fit

PF30A-IDS24 STEEL CONVERTER

STEEL BEARINGBB30 PF30A/IDS24 CONVERTER
Picture : PF30A-IDS24 STEEL CONVERTER Zoom : PF30A-IDS24 STEEL CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : PF30A
B.B. shell width : 73mm
B.B. inner diameter : ∅46mm
  Press fit

*The converter is not compatible with frames with "BB shell in 83mm width" and "Ai offset".

Important notification to customers :

BB30-IDS24 V2 STEEL CONVERTER

STEEL BEARINGBB30-IDS24 V2 CONVERTER
Picture : BB30-IDS24 V2 STEEL CONVERTER Zoom : BB30-IDS24 V2 STEEL CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : BB30
B.B. shell width : 68mm
B.B. inner diameter : ∅42mm
  Press fit

BB30A-IDS24 STEEL CONVERTER

STEEL BEARINGBB30A IDS24 CONVERTER
Picture : BB30A-IDS24 STEEL CONVERTER Zoom : BB30A-IDS24 STEEL CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Frame : BB30A
B.B. shell width : 73mm
B.B. inner diameter : ∅42mm
  Press fit

*The converter is not compatible with frames with "BB shell in 83mm width" and "Ai offset".

Important notification to customers :

Aluminum Shim Tape

Aluminum Shim Tape

Picture : Aluminum Shim Tape Zoom : Aluminum Shim Tape
User's Manual

» Download (PDF File)

Compatible Products
・B.B. CONVERTER series
