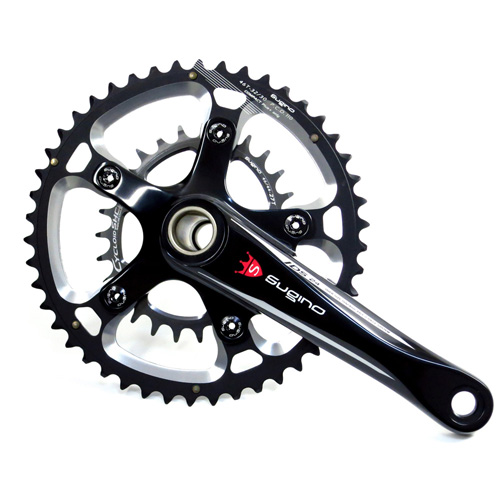

OX2-901D, Classic graphic version.
OX2 crank offers advanced performance in various scenes. Unique system called "Compact Plus+" ensures a wide range of effective gear ratios. New IDS24 axle, nickel coated, engineered at highest level of precision provides higher durability, prevents corrosion and wear, and enhances overall performance.
What is "Compact Plus+"?
OX crank is a double crank but designed to use both 74mm and 110mm PCDs. This mounting pattern is SUGINO original, called
"Compact Plus+", which enables the use of inner ring smaller than 34T and ensures a wide range of compatible rings.
P.C.D. : 110mm(Compact) & 110/74mm(Compact
Plus+)
Axle : IDS24
B.B. : MB608 (BSA) Steel (included)
Compatibility : SHIMANO 11speed/10speed
Chine line : 43.5mm
Q-factor : 145mm
Crank material : Hard forged aluminum alloy
Crank length : 160, 165, 167.5, 170, 172.5, 175
Combinations :
Compact (PCD110)
52-36, 50-36, 50-34, 48-36, 48-34, 46-36, 46-34
Compact Plus+ (PCD110/74)
48-
32, 46-
32, 46-
30, 44-
32, 44-
30
Compact Plus+ & CYCLOID
46-
27 Grey of Red, 46-
30 Grey or Red, 44-
27 Grey or Red, 44-
30 Grey or Red
CYCLOID (CY5-SHC)
Non-circular high performance inner chainring developed uniquely by Sugino. Super small 27T available, which gives you gearing 44/27T lowest in “Compact plus+” and helps you to ride up steep slopes.
For details, please see;
CYCLOID CY5-SHC
Special features :
"Super low Q-Factor 145mm", perfectly symmetric ensures smoother and efficient pedaling.
"Large ankle clearance" keeps the shoe from rubbing the crank.
Before installation, please check ;
Front Derailleur Position for installing chainwheel
OX2 crank offers advanced performance in various scenes. Unique system called "Compact Plus+" ensures a wide range of effective gear ratios. New IDS24 axle, nickel coated, engineered at highest level of precision provides higher durability, prevents corrosion and wear, and enhances overall performance.
What is "Compact Plus+"?
OX crank is a double crank but designed to use both 74mm and 110mm PCDs. This mounting pattern is SUGINO original, called "Compact Plus+", which enables the use of inner ring smaller than 34T and ensures a wide range of compatible rings.
P.C.D. : 110mm(Compact) & 110/74mm(Compact Plus+)
Axle : IDS24
B.B. : MB608 (BSA) Steel (included)
Compatibility : SHIMANO 11speed/10speed
Chine line : 43.5mm
Q-factor : 145mm
Crank material : Hard forged aluminum alloy
Crank length : 160, 165, 167.5, 170, 172.5, 175
Combinations :
Compact (PCD110)
52-36, 50-36, 50-34, 48-36, 48-34, 46-36, 46-34
Compact Plus+ (PCD110/74)
48-32, 46-32, 46-30, 44-32, 44-30
Compact Plus+ & CYCLOID
46-27 Grey of Red, 46-30 Grey or Red, 44-27 Grey or Red, 44-30 Grey or Red
CYCLOID (CY5-SHC)
Non-circular high performance inner chainring developed uniquely by Sugino. Super small 27T available, which gives you gearing 44/27T lowest in “Compact plus+” and helps you to ride up steep slopes.
For details, please see;
CYCLOID CY5-SHC
Special features :
"Super low Q-Factor 145mm", perfectly symmetric ensures smoother and efficient pedaling.
"Large ankle clearance" keeps the shoe from rubbing the crank.
Before installation, please check ;
Front Derailleur Position for installing chainwheel
