POWER SLEEVE Series

拡大写真 : CAUTIONS -分解禁止-

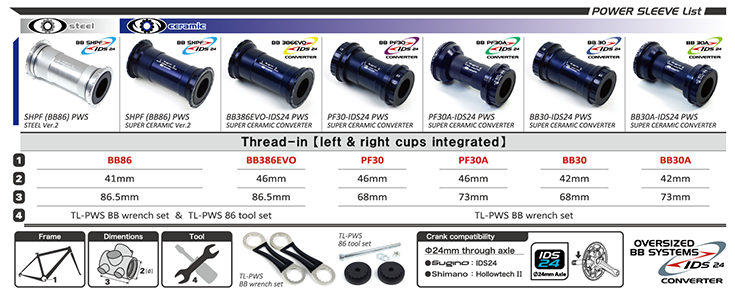

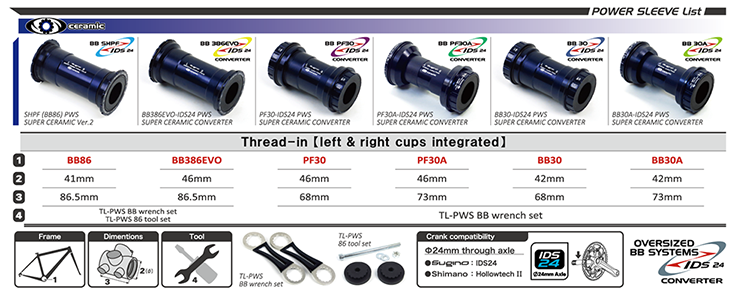

Zoom : POWER SLEEVE LIST
LOGO

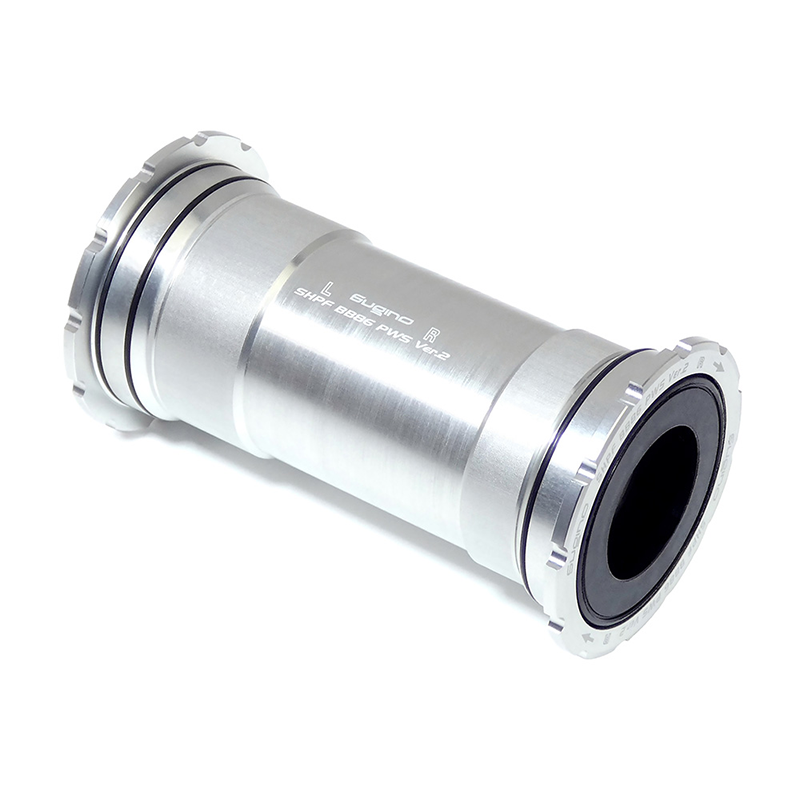

SHPF (BB86) PWS SUPER CERAMIC Ver.2

Super CeramicBB SHPF/IDS24
Picture : SHPF (BB86) PWS SUPER CERAMIC Zoom : SHPF (BB86) PWS SUPER CERAMIC
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Thread-in (left & right cups integrated)
Frame : PF BB86
B.B. shell width : 86.5mm
B.B. inner diameter : ∅41mm
Small Parts
Gasket-ring
Press Release

» Press Release 2021 1102 Download (PDF File)

BB386EVO-IDS24 PWS SUPER CERAMIC CONVERTER

Super CeramicBB 386EVO IDS24 CONVERTER
Picture : BB386EVO-IDS24 PWS SUPER CERAMIC CONVERTER Zoom : BB386EVO-IDS24 PWS SUPER CERAMIC CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Thread-in (left & right cups integrated)
Frame : BB386EVO
B.B. shell width : 86.5mm
B.B. inner diameter : ∅46mm
Small Parts
Gasket-ring

PF30-IDS24 PWS SUPER CERAMIC CONVERTER

Super CeramicBB30 PF30/IDS24 CONVERTER
Picture : PF30-IDS24 PWS SUPER CERAMIC CONVERTER Zoom : PF30-IDS24 PWS SUPER CERAMIC CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Thread-in (left & right cups integrated)
Frame : PF30
B.B. shell width : 68mm
B.B. inner diameter : ∅46mm
Small Parts
Gasket-ring

PF30A-IDS24 PWS SUPER CERAMIC CONVERTER

Super CeramicBB30 PF30A/IDS24 CONVERTER
Picture : PF30A-IDS24 PWS SUPER CERAMIC CONVERTER Zoom : PF30A-IDS24 PWS SUPER CERAMIC CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Thread-in (left & right cups integrated)
Frame : PF30A
B.B. shell width : 73mm
B.B. inner diameter : ∅46mm

*The converter is not compatible with frames with "BB shell in 83mm width" and "Ai offset".

Important notification to customers :
Small Parts
Gasket-ring

BB30-IDS24 PWS SUPER CERAMIC CONVERTER

Super CeramicBB30 IDS24 CONVERTER
Picture : BB30-IDS24 PWS SUPER CERAMIC CONVERTER Zoom : BB30-IDS24 PWS SUPER CERAMIC CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Thread-in (left & right cups integrated)
Frame : BB30
B.B. shell width : 68mm
B.B. inner diameter : ∅42mm
Small Parts
Gasket-ring

BB30A-IDS24 PWS SUPER CERAMIC CONVERTER

Super CeramicBB30A IDS24 CONVERTER
Picture : BB30A-IDS24 PWS SUPER CERAMIC CONVERTER Zoom : BB30A-IDS24 PWS SUPER CERAMIC CONVERTER
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Thread-in (left & right cups integrated)
Frame : BB30A
B.B. shell width : 73mm
B.B. inner diameter : ∅42mm

*The converter is not compatible with frames with "BB shell in 83mm width" and "Ai offset".

Important notification to customers :
Small Parts
Gasket-ring

TL-PWS BB wrench set

TL-PWS 86 tool set
