[Important otification to customers] About trouble caused by the use of Non-Sugino bottom bracket with SUGINO 75 crankset.
SUGINO75 series Front Chainwheel Dimension

Sugino 75 & GIGAS (Other)

Other

SG75 DD2(Chainwheel Set)

SG75
Picture : SG75 DD2 Black Zoom : SG75 DD2 Black Zoom : SG75 DD2 Silver Zoom : SG75 DD2 (ZEN Logo) Zoom : SG75 DD2 IDS24
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Axle Type : IDS24 (∅24mm axle)
B.B. : MB-608(BSA) STEEL
P.C.D. : 144mm
Teeth : 44 ~ 55T
Crank Length : 165 , 167.5 , 170mm
Chain Size : 1/2" × 1/8"
Chain Line : 42mm
Color : Black , Silver
*Non NJS.
Small Parts
#401 SUS75 for SUGINO75 2 piece Crank Adjust Spacer set Adjustable Bolt (M18) TL-AJB 01
Press Release

» Press Release 2018 0725 Download (PDF File)
» Press Release 2023 0620 Download (PDF File)

There are running changes in graphic color schemes on some products in Sugino75 Series. The time to complete the running change varies depending on the product. For more information, please see the press release.

SG75 DD2 crank set(Crank)

SG75
Picture : SG75 DD2 Black SG75 DD2 crank set(Black) SG75 DD2 crank set(Silver) SG75 DD2 crank set(IDS24)
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Axle Type : IDS24 (∅24mm axle)
B.B. : MB-608(BSA) STEEL
P.C.D. : 144mm
Crank Length : 165 , 167.5 , 170mm
Chain Line : 42mm
Color : Black , Silver
*Non NJS.
Small Parts
#401 SUS75 for SUGINO75 2 piece Crank Adjust Spacer set Adjustable Bolt (M18) TL-AJB 01
Press Release

» Press Release 2018 0725 Download (PDF File)
» Press Release 2023 0620 Download (PDF File)

There are running changes in graphic color schemes on some products in Sugino75 Series. The time to complete the running change varies depending on the product. For more information, please see the press release.

ZEN144(Chainring)

Picture : ZEN144 Zoom : ZEN144 ZEN144 Zoom : ZEN144 (Black) Zoom : ZEN144 (Silver)
Click to enlarge.
Specification
P.C.D. : 144mm
Chain Size : 1/2" × 1/8"
Teeth : 44 ~ 70T
Color : Black , Silver
  • *Silver 44T-55T only NJS approved.
  • *67T-70T are made-to-order and have longer delivary time.
Press Release

» Press Release 2023 0908 Download (PDF File)
» Press Release 2023 0620 Download (PDF File)

There are running changes in graphic color schemes on some products in Sugino75 Series. The time to complete the running change varies depending on the product. For more information, please see the press release.

SSG144(Chainring)

Picture : SSG144 Zoom : SSG144
Click to enlarge.
Specification
P.C.D. : 144mm
Chain Size : 1/2" × 1/8"
Teeth : 44 ~ 54T
Color : Black
*Non NJS.

MC144(Chainring)

Picture : MC144 (Silver) Zoom : MC144 (Silver) Zoom : MC144 (Black)
Click to enlarge.
Specification
P.C.D. : 144mm
Chain Size : 1/2" × 1/8"
Teeth : 44 ~ 55T
Color : Black , Silver
*Non NJS.
*Black is to be discontinued when stocks sell out.

SG75 144(Crank)

SG75
Picture : SG75 144 Zoom : SG75 144 Zoom : SG75 144 x ZEN144 Zoom : SG75 144 x SSG144 Zoom : SG75 144 x MC144
Click to enlarge.
Specification
Type : 4-TAPER (SG75 taper)
P.C.D. : 144mm
Crank Length : 165 , 167.5 , 170 , 172.5 , 175mm
Chain Line : 42mm (BB-SG75)
Color : Silver

*Non NJS.

*SG75 taper is a proprietary standard by Sugino, not compatible with other standards.

*Use either of Sugino axle bolts of 18mm below the head, ❶one provided with BB-SG75, ❷14BK or ❸CPB. If the bolt is not long enough, this can lead to breakdowns and serious accidents.

B.B.
BB-SG75 SUPER CERAMIC BB-SG75 SUPER LAP / Standard CBB-SG75
Small Parts
#401 SUS75 for SUGINO75 CNS Alloy Dust Cap BB Axle Bolt

SUGINO75 CRITERIUM(Chainwheel Set)

SG75
*To be discontinued
when stocks sell out
Picture : SUGINO75 CRITERIUM (48T) Zoom : SUGINO75 CRITERIUM (48T) Zoom : SUGINO75 CRITERIUM (45T)
Click to enlarge.
Specification
P.C.D. : 144mm
Crank : SG75 144(Black)
Chainring : PJ144 CRITERIUM
Crank Length : 165 , 167.5 , 170 , 172.5 , 175mm
Type : 4-TAPER (SG75)
Compatibility : 1/2" × 1/8" chain
B.B. : CBB-SG75
Material : Hard forged aluminum alloy crank
Surface Finish : Anodized
Chain Line : 42mm (CBB-SG75)
*Non NJS.

*SG75 taper is a proprietary standard by Sugino, not compatible with other standards.

PJ144 CRITERIUM(Chainring)

*To be discontinued
when stocks sell out
Picture : PJ144 CRITERIUM (48T) Zoom : PJ144 CRITERIUM (48T) Zoom : SUGINO75 CRITERIUM (43T-45T)
Click to enlarge.
Specification
P.C.D. : 144mm
Chain Size : 1/2" × 1/8"
Teeth : 44 , 45 , 48T
Surface Finish : Anodized
*Non NJS.

CBB-SG75(B.B.)

SG75
Picture : CBB-SG75 Zoom : CBB-SG75
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Cartridge BB model of BB-SG75 series.
Axle Type : 4-TAPER (SG 75)
Cup Thread : BC1.37 × 24T
Shell Width : 68mm
Cup Material : Aluminium alloy

*Non NJS.

*SG75 taper is a proprietary standard by Sugino, not compatible with other standards.

*Axle bolts are sold separately. Use either of Sugino bolts of 18mm below the head, ❶14BK or ❷CPB. If the bolt is not long enough, this can lead to breakdowns and serious accidents.

Small Parts
BB Axle Bolt

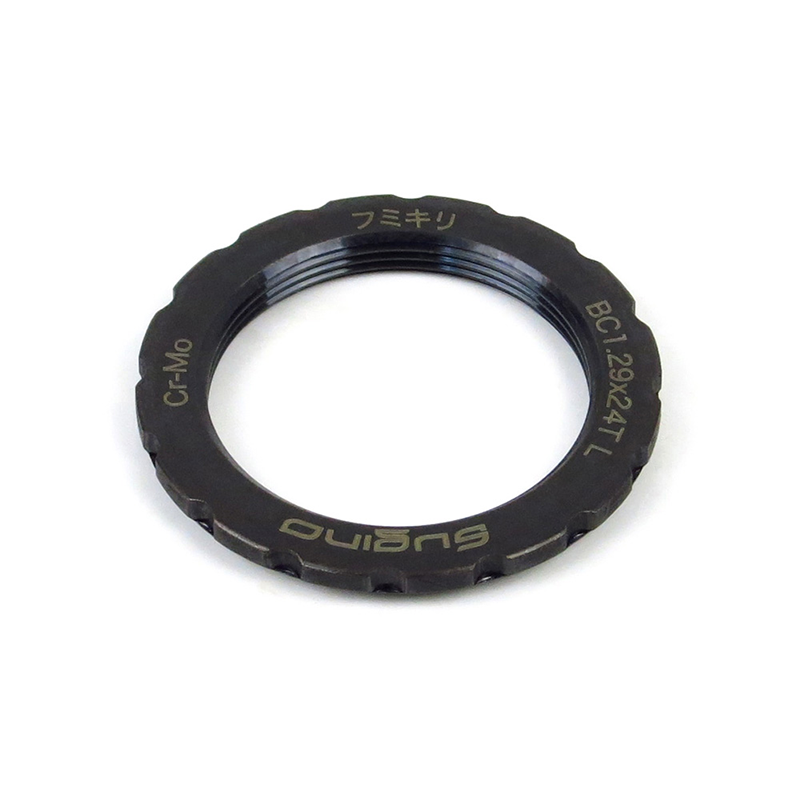

FUMIKIRI(Lockring)

Picture : FUMIKIRI Zoom : FUMIKIRI
Click to enlarge.
User's Manual

» Download (PDF File)

Specification
Thread : BC1.29 × 24T-L
Material : Cr-Mo Steel
*Non NJS.
